MAC, Cordis, Sheath Introducer – What’s The Difference?

In: ,
Tags: , ,

As a cardiothoracic anesthesiologist and intensivist, I routinely place large central lines for resuscitation, vasoactive/inotrope administration, and to facilitate additional monitoring (e.g., Swan Ganz catheter). Over the years, I’ve heard “MAC,” “sheath introducer,” “Cordis,” etc., used interchangeably but incorrectly. Let’s break these terms down!

SHEATH INTRODUCER

A “sheath” or “introducer” refers to any line (arterial or venous) that contains a port allowing a proceduralist to “introduce” (hence the name) transvenous pacing wires, Swan Ganz catheters, intravascular ultrasound (IVUS), intra-aortic balloon pumps, single lumen infusion catheters (“SLICs”), etc. The introducer lumen has a one-way diaphragm that prevents back bleeding and can often be capped with an obturator when not in use. The MAC and Cordis are two examples of venous introducers.

The following is a 9 French percutaneous sheath introducer (PSI).

Manufacturer: Arrow/Teleflex
Catheter: percutaneous sheath introducer (PSI)
Lumens: introducer + one infusion port

Compared to the 9 French MAC (see below), the PSI is shorter and a better large-volume resuscitation line due to better flow rates per Poiseuille’s Law. The big drawback is that it only has one side lumen.

MULTI-LUMEN ACCESS CATHETER (MAC)

Manufacturer: Arrow/Teleflex
Catheter: multi-lumen access catheter (MAC)
Lumens: introducer + two infusion ports (brown distal, white proximal/side)

The brown lumen looks larger, so it makes sense that, at baseline, it flows faster than the white lumen. When we look closer at the MAC’s flow rates, notice how if a catheter is inserted into the introducer (e.g., a Swan-Ganz catheter), this steals real estate from the brown lumen and now makes the white lumen the faster-flowing option. In this example, if the introducer is occupied with an 8 French catheter, the distal brown port’s flow is reduced from 33,000 mL/hr to 10,500 mL/hr, making the proximal white port faster (13,000 mL/hr)!

Always read your catheter’s flow rates as this can vary from one version to the next!

Even though this MAC is listed as 9 French in size, that’s only the case at the very distal tip of the catheter. Notice how as you move proximally, it quickly gets larger. Gotta make some room for that second infusion lumen! Based on the device cross-section (4.7 mm outer diameter), the outer diameter is closer to ~13.5 French!

To facilitate speed of placement, MACs are placed with the dilator inserted through the introducer in one motion rather than sequential steps. The dilator and guidewire are removed once the MAC has been fully inserted. This style of placement is the same for many introducers.

“SLIC”

Manufacturer: Arrow/Teleflex

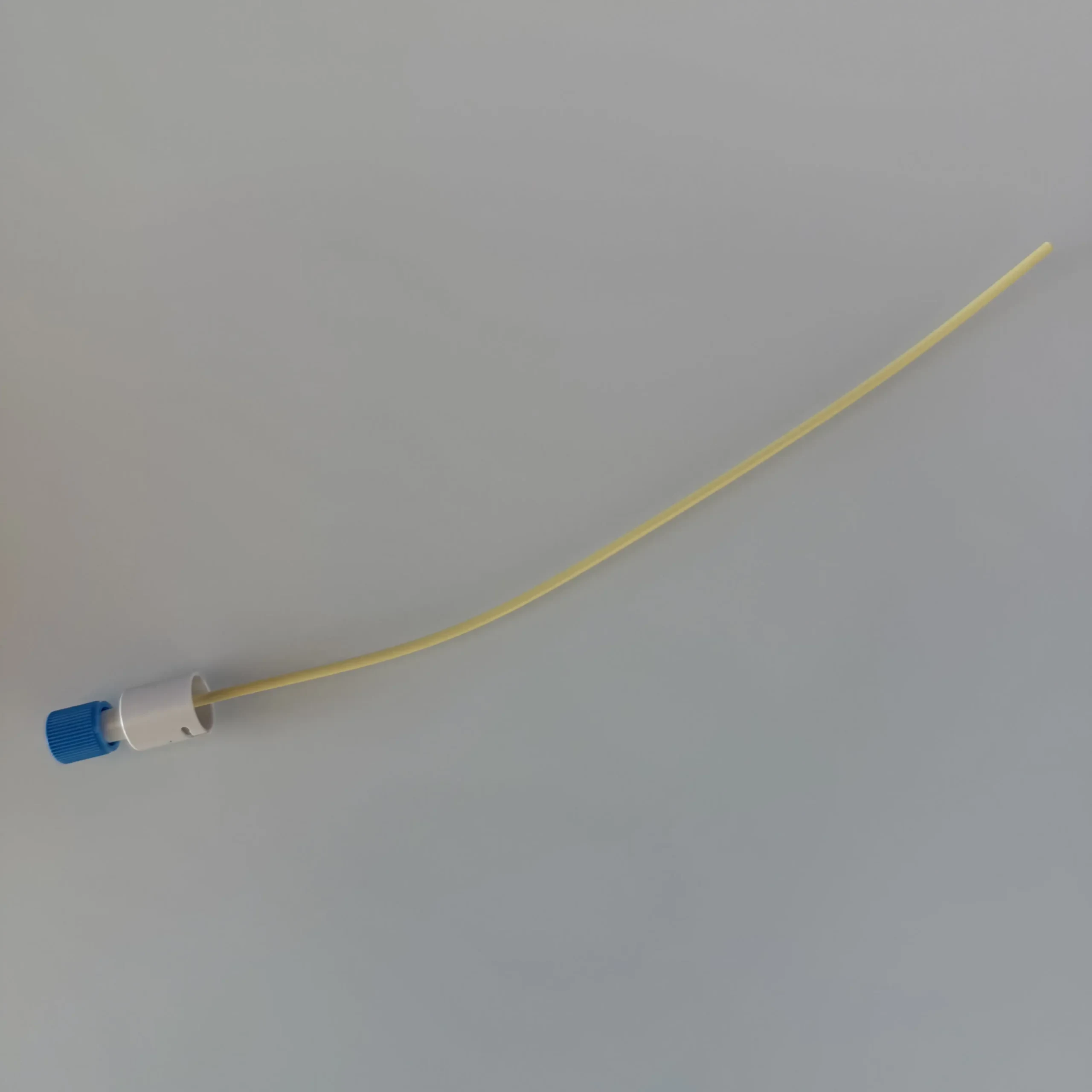

Catheter: Single-Lumen Infusion Catheter (SLIC)
Lumen: single infusion port (7 French, 20 cm length)

The single-lumen infusion catheter (SLIC) can be passed through the introducer portion of a PSI or MAC and provides another lumen to transduce central venous pressure, infuse medications, etc.

“CORDIS”

Manufacturer: Cordis (a Cardinal Health Company)
Catheter: AVANTI + Sheath Introducer
Lumens: introducer + one infusion port

Cordis AVANTI®+ Introducer (Image: Cordis.com)

“Cordis” is a company; the AVANTI introducer is the name of the catheter. Like the PSI above, this catheter has an introducer and one side port.

Drop me a comment with questions! 🙂
